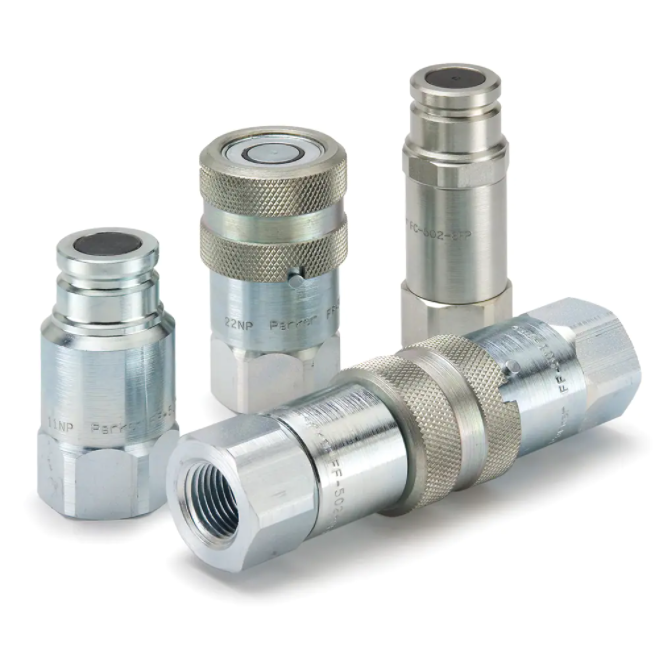

PARKER FF平面快速接头
| 部件 | 阀体尺寸（英寸） | 连接螺纹尺寸（英寸） | 连接类型 | 最大运行压力 | 交换式 | 半联轴器 |
|---|---|---|---|---|---|---|
| FF-372-6FB | 3/8 | G3/8 | Female BSPP | 3000 | HTMA (ISO 16028) | Male Nipple |
| FF-372-8FB | 3/8 | G1/2 | Female BSPP | 3000 | HTMA (ISO 16028) | Male Nipple |
| FF-371-6FB | 3/8 | G 3/8 | Female BSPP | 3000 | HTMA (ISO 16028) | Female Coupler |
| FF-371-8FB | 3/8 | G 1/2 | Female BSPP | 3000 | HTMA (ISO 16028) | Female Coupler |
| FF-251-6FO | 1/4 | 9/16 - 18 | Female UNF | 5000 | na | Female Coupler |
| FF-252-6FO | 1/4 | 9/16 - 18 | Female UNF | 5000 | na | Male Nipple |
| FC-502-10FO | 1/2 | 7/8 - 14 | Female UNF | 3000 | na | Male Nipple |
| FF-501-10FO | 1/2 | 7/8 - 14 | Female UNF | 3000 | na | Female Coupler |
| FF-502-10FO | 1/2 | 7/8 - 14 | Female UNF | 3000 | na | Male Nipple |
| FC-372-6FP | 3/8 | 3/8 - 18 | Female NPSF | 3000 | HTMA (ISO 16028) | Male Nipple |
| FF-371-6FP | 3/8 | 3/8 - 18 | Female NPSF | 3000 | HTMA (ISO 16028) | Female Coupler |
| FF-372-6FP | 3/8 | 3/8 - 18 | Female NPSF | 3000 | HTMA (ISO 16028) | Male Nipple |
| FC-372-8FO | 3/8 | 3/4 - 16 | Female UNF | 3000 | HTMA (ISO 16028) | Male Nipple |
| FF-371-8FO | 3/8 | 3/4 - 16 | Female UNF | 3000 | HTMA (ISO 16028) | Female Coupler |
| FF-372-8FO | 3/8 | 3/4 - 16 | Female UNF | 3000 | HTMA (ISO 16028) | Male Nipple |
| FC-752-12FP | 3/4 | 3/4 - 14 | Female NPSF | 1500 | na | Male Nipple |
| FF-751-12FP | 3/4 | 3/4 - 14 | Female NPSF | 3000 | na | Female Coupler |
| FF-752-12FP | 3/4 | 3/4 - 14 | Female NPSF | 3000 | na | Male Nipple |
| FF-251-4FP | 1/4 | 1/4 - 18 | Female NPSF | 5000 | na | Female Coupler |
| FF-251-4MP | 1/4 | 1/4 - 18 | Male NPTF | 5000 | na | Female Coupler |
| FF-252-4FP | 1/4 | 1/4 - 18 | Female NPSF | 5000 | na | Male Nipple |
| FF-252-4MP | 1/4 | 1/4 - 18 | Male NPTF | 5000 | na | Male Nipple |
| FC-372-8FP | 3/8 | 1/2 - 14 | Female NPSF | 3000 | HTMA (ISO 16028) | Male Nipple |
| FC-502-8FP | 1/2 | 1/2 - 14 | Female NPSF | 3000 | na | Male Nipple |
| FF-371-8FP | 3/8 | 1/2 - 14 | Female NPSF | 3000 | HTMA (ISO 16028) | Female Coupler |
| FF-372-8FP | 3/8 | 1/2 - 14 | Female NPSF | 3000 | HTMA (ISO 16028) | Male Nipple |
| FF-501-8FP | 1/2 | 1/2 - 14 | Female NPSF | 3000 | na | Female Coupler |
| FF-502-8FP | 1/2 | 1/2 - 14 | Female NPSF | 3000 | na | Male Nipple |
| FF-1001-16FO | 1 | 1 5/16 - 12 | Female UNF | 3000 | na | Female Coupler |
| FF-1002-16FO | 1 | 1 5/16 - 12 | Female UNF | 3000 | na | Male Nipple |
| FC-752-12FO | 3/4 | 1 1/16 - 12 | Female UNF | 1500 | na | Male Nipple |
| FF-751-12FO | 3/4 | 1 1/16 - 12 | Female UNF | 3000 | na | Female Coupler |
| FF-752-12FO | 3/4 | 1 1/16 - 12 | Female UNF | 3000 | na | Male Nipple |
| FF-1001-16FP | 1 | 1 - 11 1/2 | Female NPSF | 3000 | na | Female Coupler |
| FF-1002-16FP | 1 | 1 - 11 1/2 | Female NPSF | 3000 | na | Male Nipple |
