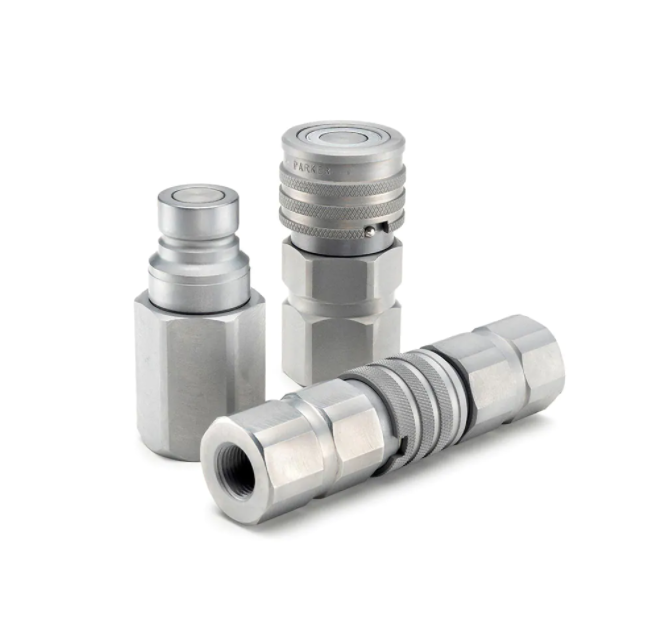

PARKER FEM平面快速接头
| 部件 | 最大工作压力（psi) | 阀体尺寸（英寸） | 阀形式 | 连接螺纹尺寸（英寸） | 螺纹形式 |
|---|---|---|---|---|---|
| FEM-372-6FP | 5000 | 3/8 | Non-spill | 3/8 - 18 | Female |
| FEM-372-8FO | 5000 | 3/8 | Non-spill | 3/4 - 16 | Female |
| FEM-502-10BMF | 5000 | 1/2 | Non-spill | 7/8 - 14 | Male bulkhead flare |
| FEM-502-10BMS | 5000 | 1/2 | Non-spill | 1 - 14 | Male bulkhead face seal |
| FEM-502-10FO | 5000 | 1/2 | Non-spill | 7/8 - 14 | Female |
| FEM-502-12FO | 5000 | 1/2 | Non-spill | 1 1/16 - 12 | Female |
| FEM-502-8FO | 5000 | 1/2 | Non-spill | 3/4 - 16 | Female |
| FEM-502-8FP | 5000 | 1/2 | Non-spill | 1/2 - 14 | Female |
| FEM-252-4FP | 4568 | 1/4 | Non-spill | 1/4 - 18 | Female |
| FEM-252-6FO | 4568 | 1/4 | Non-spill | 9/16 - 18 | Female |
| FEC-502-10FO | 3625 | 1/2 | Connect under pressure, non-spill | 7/8 - 14 | Female |
| FEC-502-12FO | 3625 | 1/2 | Connect under pressure, non-spill | 1 1/16 - 12 | Female |
| FEC-502-8FP | 3625 | 1/2 | Connect under pressure, non-spill | 1/2 - 14 | Female |
| FEC-622-12FO | 3625 | 5/8 | Connect under pressure, non-spill | 1 1/16 - 12 | Female |
| FEC-752-12FO | 3625 | 3/4 | Connect under pressure, non-spill | 1 1/16 - 12 | Female |
| FEM-622-12FO | 3625 | 5/8 | Non-spill | 1 1/16 - 12 | Female |
| FEM-752-12FO | 3625 | 3/4 | Non-spill | 1 1/16 - 12 | Female |
| FEM-752-12FP | 3625 | 3/4 | Non-spill | 3/4 - 14 | Female |
| FEM-1002-16FO | 2900 | 1 | Non-spill | 1 5/16 - 12 | Female |
| FEM-1002-16FP | 2900 | 1 | Non-spill | 1 - 11 1/2 | Female |
| 部件 | 连接螺纹尺寸（英寸） | 连接类型 | 螺纹形式 | 阀体尺寸（英寸） |
|---|---|---|---|---|
| FEM-621-12FO-NL | 1 1/16 - 12 | UNF | Female | 5/8 |
| FEM-371-6FP | 3/8 - 18 | NPSF | Female | 3/8 |
| FEM-371-8FO | 3/4 - 16 | UNF | Female | 3/8 |
| FEM-751-12FP-NL | 3/4 - 14 | NPSF | Female | 3/4 |
| FEM-751-12FO-NL | 1 1/16 - 12 | UNF | Female | 3/4 |
| FEM-251-6FO-NL | 9/16 - 18 | UNF | Female | 1/4 |
| FEM-251-4FP-NL | 1/4 - 18 | NPSF | Female | 1/4 |
| FEM-501-10FO | 7/8 - 14 | UNF | Female | 1/2 |
| FEM-501-10BMF | 7/8 - 14 | UNF | Male bulkhead flare | 1/2 |
| FEM-501-8FO | 3/4 - 16 | UNF | Female | 1/2 |
| FEM-501-8FP | 1/2 - 14 | NPSF | Female | 1/2 |
| FEM-501-12FO | 1 1/16 - 12 | UNF | Female | 1/2 |
| FEM-501-10BMS | 1 - 14 | UNS | Male bulkhead face seal | 1/2 |
| FEM-1001-16FO-NL | 1 5/16 - 12 | UNF | Female | 1 |
| FEM-1001-16FP-NL | 1 - 11 1/2 | NPSF | Female | 1 |
