产品介绍

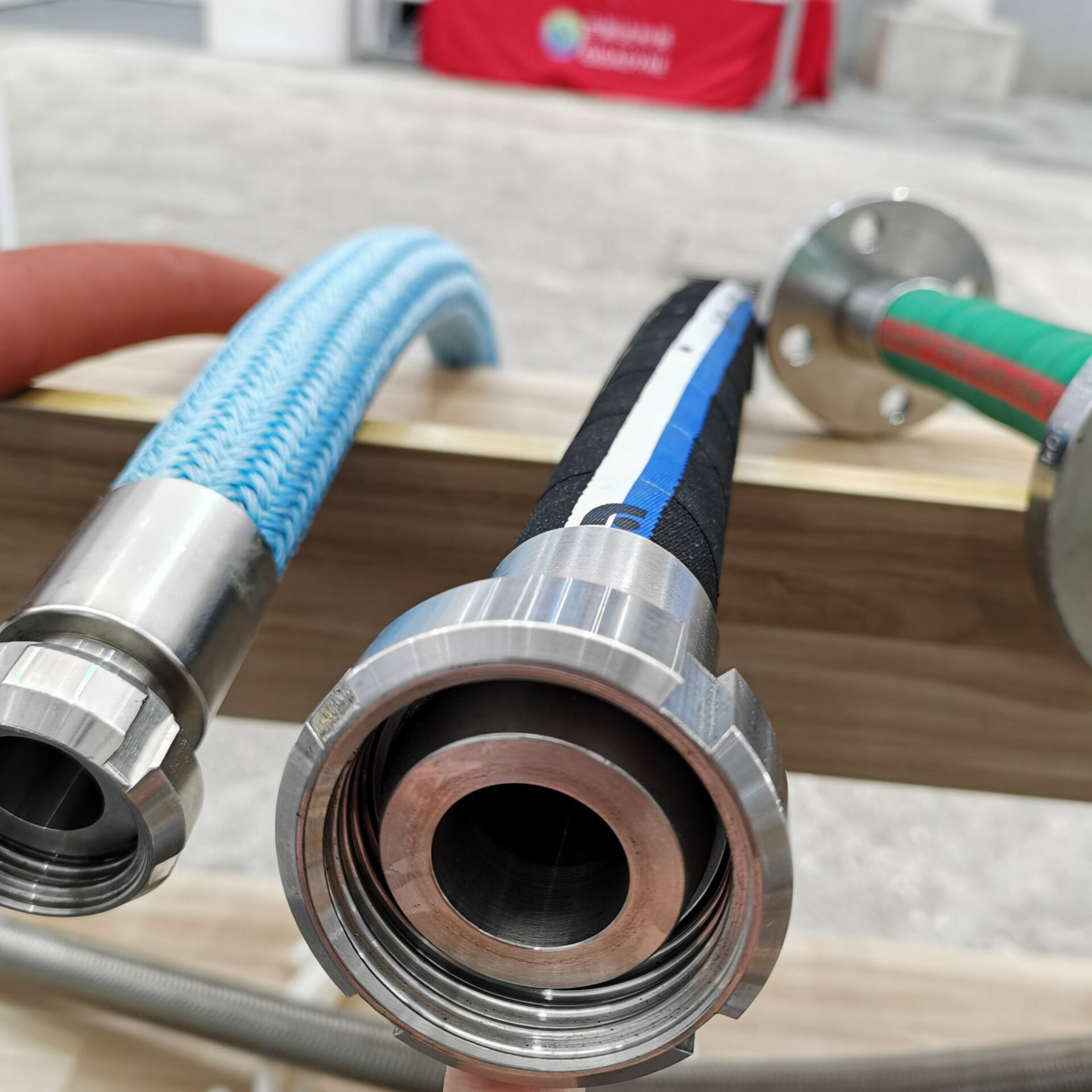

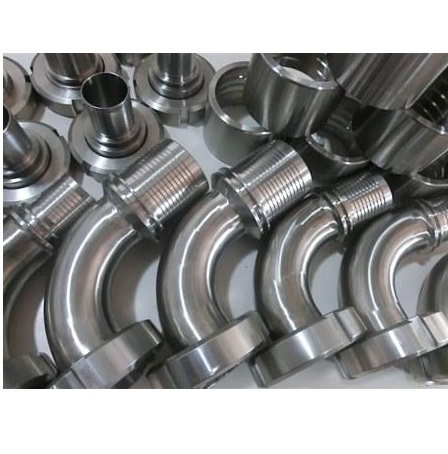

DIN11851接头

材质316和316L

DIN 11851					DIN 11851
MALE - DIN 2817 HOSE SHANK					FEMALE - DIN 2817 HOSE SHANK
	HOSE	HOSE	HEAD	MATERIAL		HOSE	HOSE	HEAD	MATERIAL
产品	I.D.	I.D.	DN		产品	I.D.	I.D.	DN
	in	mm	mm			in	mm	mm
	1	25	25	S/S 316		1	25	25	S/S 316
	1 1/4	32	32	S/S 316		1 1/4	32	32	S/S 316
	1 1/2	38	40	S/S 316		1 1/2	38	40	S/S 316
	2	51	50	S/S 316		2	51	50	S/S 316
	2 1/2	63	65	S/S 316		2 1/2	63	65	S/S 316
	3	76	80	S/S 316		3	76	80	S/S 316
	4	102	100	S/S 316		4	102	100	S/S 316

DIN 11851					DIN 11851
MALE - SERRATED HOSE SHANK					FEMALE WITH ROUND NUT - SERRATED HOSE SHANK
	HOSE	HOSE	HEAD	MATERIAL		HOSE	HOSE	HEAD	MATERIAL
产品	I.D.	I.D.	DN		产品	I.D.	I.D.	DN
	in	mm	mm			in	mm	mm
	1	25	25	S/S 316		1	25	25	S/S 316
	1 1/4	32	32	S/S 316		1 1/4	32	32	S/S 316
	1 1/2	38	40	S/S 316		1 1/2	38	40	S/S 316
	2	51	50	S/S 316		2	51	50	S/S 316
	2 1/2	63	65	S/S 316		2 1/2	63	65	S/S 316
	3	76	80	S/S 316		3	76	80	S/S 316
	4	102	100	S/S 316		4	102	100	S/S 316
