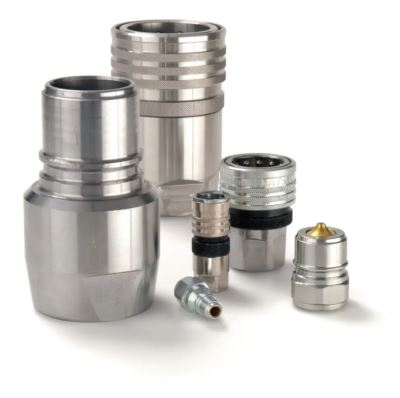

PARKER TEMA快速接头
| 部件 | 阀体尺寸（英寸） | 密封材料 | 连接工作压力（bar) | 阀 | 类型 | 版本 | 长度（毫米） | 外六角螺栓（毫米） | 外沿直径（毫米） | 材料 |
|---|---|---|---|---|---|---|---|---|---|---|
| 276 | n/a | n/a | 0 | n/a | Measuring Plug | n/a | n/a | n/a | n/a | |

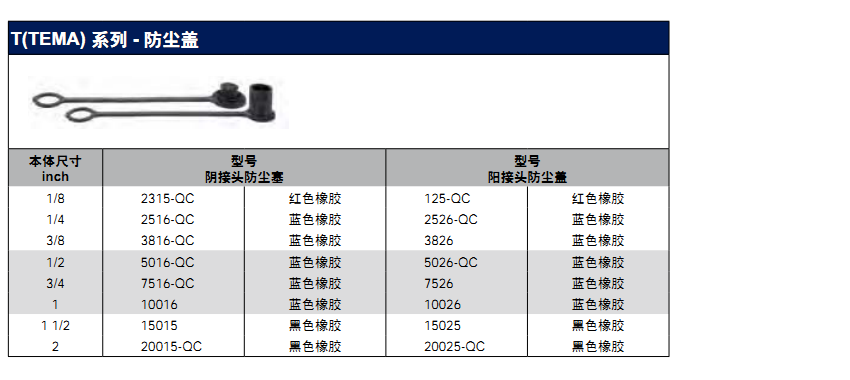

| 3826 | 3/8 | n/a | 0 | n/a | Dust Protection | for Plug | 145 | n/a | n/a | PVC |
| 3821 V | 3/8 | FKM | 350 | with | Plug | Pressure Eliminator | 43 | 22 | 24 | Brass / Steel |
| 3821 RV | 3/8 | FKM | 350 | with | Plug | Pressure Eliminator | 43 | 22 | 24 | Stainless Steel |
| 3821 RFV | 3/8 | FKM | 350 | with | Plug | Pressure Eliminator | 43 | 22 | 24 | Stainless Steel, Brass Valve |
| 3821 | 3/8 | NBR | 350 | with | Plug | Pressure Eliminator | 43 | 22 | 24 | Brass / Steel |
| 3820 V | 3/8 | FKM | 350 | with | Plug | Standard | 42 | 22 | 24 | Brass / Steel |
| 3820 UV | 3/8 | na | 350 | without | Plug | Standard | 38 | 22 | 24 | Brass / Steel |
| 3820 RV | 3/8 | FKM | 300 | with | Plug | Stainless Steel | 42 | 22 | 24 | Stainless Steel |
| 3820 RUV | 3/8 | na | 300 | without | Plug | Stainless Steel | 38 | 22 | 24 | Stainless Steel |
| 3820 RFV | 3/8 | FKM | 300 | with | Plug | Stainless Steel | 42 | 22 | 24 | Stainless Steel, Brass Valve |
| 3820 RFUV | 3/8 | na | 170 | without | Plug | Stainless Steel | 38 | 22 | 24 | Stainless Steel, Brass Valve |
| 3820 RF | 3/8 | NBR | 300 | with | Plug | Stainless Steel | 42 | 22 | 24 | Stainless Steel, Brass Valve |
| 3820 | 3/8 | NBR | 350 | with | Plug | Standard | 42 | 22 | 24 | Brass / Steel |
| 3816-QC | 3/8 | n/a | 0 | n/a | Dust Protection | for Coupling | 145 | n/a | n/a | PVC |
| 3811 V | 3/8 | FKM | 350 | with | Coupling | Pressure Eliminator | 60 | 24 | 34 | Brass / Steel |
| 3811 RV | 3/8 | FKM | 300 | with | Coupling | Pressure Eliminator | 60 | 24 | 34 | Stainless Steel |
| 3811 RFV | 3/8 | FKM | 300 | with | Coupling | Pressure Eliminator | 60 | 24 | 34 | Stainless Steel, Brass Valve |
| 3811 | 3/8 | NBR | 350 | with | Coupling | Pressure Eliminator | 60 | 24 | 34 | Brass / Steel |
| 3810 VUV | 3/8 | FKM | 350 | without | Coupling | Standard | 60 | 24 | 34 | Brass / Steel |
| 3810 V | 3/8 | FKM | 350 | with | Coupling | Standard | 60 | 24 | 34 | Brass / Steel |
| 3810 UV | 3/8 | NBR | 350 | without | Coupling | Standard | 60 | 24 | 34 | Brass / Steel |
| 3810 RVUV | 3/8 | FKM | 350 | without | Coupling | Stainless Steel | 60 | 24 | 34 | Stainless Steel |
| 3810 RV | 3/8 | FKM | 300 | with | Coupling | Stainless Steel | 60 | 24 | 34 | Stainless Steel |
| 3810 HV | 3/8 | FKM | 350 | without | Coupling | High Pressure Water | 60 | 24 | 34 | Brass, chromated |
| 3810 HEP | 3/8 | EPDM | 350 | without | Coupling | High Pressure Water | 60 | 24 | 34 | Brass, chromated |
| 3810 H2V | 3/8 | FKM | 350 | without | Coupling | High Pressure Water | 60 | 29 | 34 | Brass, chromated |
| 3810 H2EP | 3/8 | EPDM | 350 | without | Coupling | High Pressure Water | 60 | 29 | 34 | Brass, chromated |
| 3810 H2 | 3/8 | NBR | 350 | without | Coupling | High Pressure Water | 60 | 29 | 34 | Brass, chromated |
| 3810 H | 3/8 | NBR | 350 | without | Coupling | High Pressure Water | 60 | 24 | 34 | Brass, chromated |
| 3810 | 3/8 | NBR | 350 | with | Coupling | Standard | 60 | 24 | 34 | Brass / Steel |
| 3800-PSN | 3/8 | NBR | 0 | n/a | Seal-Kit | for Coupling | n/a | n/a | n/a | n/a |
| 7521-QC | 3/4 | NBR | 300 | with | Plug | Pressure Eliminator | 53 | 36 | 39 | Brass / Steel |
| 7521 V | 3/4 | FKM | 300 | with | Plug | Pressure Eliminator | 53 | 36 | 39 | Brass / Steel |
| 7521 S | 3/4 | NBR | 300 | with | Super Nipple | Pressure Eliminator | 53 | 36 | 39 | Brass / Steel |
| 7521 RV | 3/4 | FKM | 250 | with | Plug | Pressure Eliminator | 53 | 36 | 39 | Stainless Steel |
| 7521 RFV | 3/4 | FKM | 250 | with | Plug | Pressure Eliminator | 53 | 36 | 39 | Stainless Steel, Brass Valve |
| 7520-QC | 3/4 | NBR | 300 | with | Plug | Standard | 52 | 36 | 39 | Brass / Steel |
| 7520 V | 3/4 | FKM | 300 | with | Plug | Standard | 52 | 36 | 39 | Brass / Steel |
| 7520 UV | 3/4 | na | 300 | without | Plug | Standard | 47 | 36 | 39 | Brass / Steel |
| 7520 S | 3/4 | NBR | 300 | with | Super Nipple | Standard | 52 | 36 | 39 | Brass / Steel |
| 7520 RV | 3/4 | FKM | 250 | with | Plug | Stainless Steel | 52 | 36 | 39 | Stainless Steel |
| 7520 RUV | 3/4 | na | 250 | without | Plug | Stainless Steel | 47 | 36 | 39 | Stainless Steel |
| 7516-QC | 3/4 | n/a | 0 | n/a | Dust Protection | for Coupling | 195 | n/a | n/a | PVC |
| 7511 V | 3/4 | FKM | 280 | with | Coupling | Pressure Eliminator | 72 | 38 | 52 | Brass / Steel |
| 7511 RV | 3/4 | FKM | 250 | with | Coupling | Pressure Eliminator | 72 | 38 | 52 | Stainless Steel |
| 7511 RFV | 3/4 | FKM | 250 | with | Coupling | Pressure Eliminator | 72 | 38 | 52 | Stainless Steel, Brass Valve |
| 7511 | 3/4 | NBR | 280 | with | Coupling | Pressure Eliminator | 72 | 38 | 52 | Brass / Steel |
| 7510 VUV | 3/4 | FKM | 280 | without | Coupling | Standard | 73 | 38 | 52 | Brass / Steel |
| 7510 V | 3/4 | FKM | 280 | with | Coupling | Standard | 73 | 38 | 52 | Brass / Steel |
| 7510 UV | 3/4 | NBR | 280 | without | Coupling | Standard | 73 | 38 | 52 | Brass / Steel |
| 7510 RVUV | 3/4 | FKM | 250 | without | Coupling | Stainless Steel | 73 | 38 | 52 | Stainless Steel |
| 7510 RV | 3/4 | FKM | 250 | with | Coupling | Stainless Steel | 73 | 38 | 52 | Stainless Steel |
| 7510 | 3/4 | NBR | 280 | with | Coupling | Standard | 73 | 38 | 52 | Brass / Steel |
| 7500-PSV | 3/4 | FKM | 0 | n/a | Seal-Kit | for Plug | n/a | n/a | n/a | n/a |
| 7500-PSN | 3/4 | NBR | 0 | n/a | Seal-Kit | for Coupling | n/a | n/a | n/a | n/a |
| 20020-QC | 2 | NBR | 180 | with | Plug | Standard | 142 | 75 | 85 | Brass / Steel |
| 20020 V | 2 | FKM | 180 | with | Plug | Standard | 142 | 75 | 85 | Brass / Steel |
| 20020 UV | 2 | na | 180 | without | Plug | Standard | 142 | 75 | 85 | Brass / Steel |
| 20020 RV | 2 | FKM | 120 | with | Plug | Stainless Steel | 142 | 75 | 85 | Stainless Steel |
| 20020 RUV | 2 | na | 120 | without | Plug | Stainless Steel | 142 | 75 | 85 | Stainless Steel |
| 20010-QC | 2 | NBR | 180 | with | Coupling | Standard | 144 | 75 | 90 | Brass / Steel |
| 20010 VUV | 2 | FKM | 180 | without | Coupling | Standard | 144 | 75 | 90 | Brass / Steel |
| 20010 V | 2 | FKM | 180 | with | Coupling | Standard | 144 | 75 | 90 | Brass / Steel |
| 20010 UV | 2 | NBR | 180 | without | Coupling | Standard | 144 | 75 | 90 | Brass / Steel |
| 20010 RVUV | 2 | FKM | 120 | without | Coupling | Stainless Steel | 144 | 75 | 90 | Stainless Steel |
| 20010 RV | 2 | FKM | 120 | with | Coupling | Stainless Steel | 144 | 75 | 90 | Stainless Steel |
| 2320 V | 1/8 | FKM | 200 | with | Plug | Standard | 38 | 15 | 17 | Brass / Steel |
| 2320 UV | 1/8 | na | 200 | without | Plug | Standard | 36 | 15 | 17 | Brass / Steel |
| 2320 RV | 1/8 | FKM | 200 | with | Plug | Stainless Steel | 36 | 15 | 17 | Stainless Steel |
| 2320 RUV | 1/8 | na | 200 | without | Plug | Stainless Steel | 36 | 15 | 17 | Stainless Steel |
| 2320 RFV | 1/8 | FKM | 200 | with | Plug | Stainless Steel | 38 | 15 | 17 | Stainless Steel, Brass Valve |
| 2320 | 1/8 | NBR | 200 | with | Plug | Standard | 36 | 15 | 17 | Brass / Steel |
| 2315-QC | 1/8 | n/a | 0 | n/a | Dust Protection | for Coupling | 66 | n/a | n/a | PVC |
| 2310-QC | 1/8 | NBR | 200 | with | Coupling | Standard | 38 | 15 | 18 | Brass / Steel |
| 2310 VUV | 1/8 | FKM | 200 | without | Coupling | Standard | 38 | 15 | 18 | Brass / Steel |
| 2310 V | 1/8 | FKM | 200 | with | Coupling | Standard | 38 | 15 | 18 | Brass / Steel |
| 2310 UV | 1/8 | NBR | 200 | without | Coupling | Standard | 38 | 15 | 18 | Brass / Steel |
| 2310 RVUV | 1/8 | FKM | 200 | without | Coupling | Stainless Steel | 38 | 15 | 18 | Stainless Steel |
| 2310 RV | 1/8 | FKM | 200 | with | Coupling | Stainless Steel | 38 | 15 | 18 | Stainless Steel |
| 2526-QC | 1/4 | n/a | 0 | n/a | Dust Protection | for Plug | 145 | n/a | n/a | PVC |
| 2520 V | 1/4 | FKM | 450 | with | Plug | Standard | 45 | 19 | 21 | Brass / Steel |
| 2520 UV | 1/4 | na | 450 | without | Plug | Standard | 45 | 19 | 21 | Brass / Steel |
| 2520 RV | 1/4 | FKM | 250 | with | Plug | Stainless Steel | 45 | 19 | 21 | Stainless Steel |
| 2520 RUV | 1/4 | na | 250 | without | Plug | Stainless Steel | 45 | 19 | 21 | Stainless Steel |
| 2520 RHUV | 1/4 | na | 450 | without | Plug | Stainless Steel | 45 | 19 | 21 | Stainless Steel |
| 2520 RFV2 | 1/4 | FKM | 170 | with | Plug | High Pressure Water | 45 | 19 | 21 | Stainless Steel, Brass Valve |
| 2520 RFV | 1/4 | FKM | 250 | with | Plug | Stainless Steel | 45 | 19 | 21 | Stainless Steel, Brass Valve |
| 2520 RFUV2 | 1/4 | na | 170 | without | Plug | Stainless Steel | 45 | 19 | 21 | Stainless Steel |
| 2520 | 1/4 | NBR | 450 | with | Plug | Standard | 45 | 19 | 21 | Brass / Steel |
| 2516-QC | 1/4 | n/a | 0 | n/a | Dust Protection | for Coupling | 145 | n/a | n/a | PVC |
| 2510-QC | 1/4 | NBR | 450 | with | Coupling | Standard | 64 | 21 | 25 | Brass / Steel |
| 2510 VUV | 1/4 | FKM | 450 | without | Coupling | Standard | 64 | 21 | 25 | Brass / Steel |
| 2510 V | 1/4 | FKM | 450 | with | Coupling | Standard | 64 | 21 | 25 | Brass / Steel |
| 2510 UV | 1/4 | NBR | 450 | without | Coupling | Standard | 64 | 21 | 25 | Brass / Steel |
| 2510 RVUV | 1/4 | FKM | 250 | without | Coupling | Stainless Steel | 64 | 21 | 25 | Stainless Steel |
| 2510 RV | 1/4 | FKM | 250 | with | Coupling | Stainless Steel | 64 | 21 | 25 | Stainless Steel |
| 5021-QC | 1/2 | NBR | 320 | with | Plug | Pressure Eliminator | 47 | 27 | 30 | Brass / Steel |
| 5021 V | 1/2 | FKM | 320 | with | Plug | Pressure Eliminator | 47 | 27 | 30 | Brass / Steel |
| 5021 RV | 1/2 | FKM | 300 | with | Plug | Pressure Eliminator | 47 | 27 |
| 部件 | 阀体尺寸（英寸） | 密封材料 | 连接工作压力（bar) | 阀 | 类型 | 版本 | 长度（毫米） | 外六角螺栓（毫米） | 外沿直径（毫米） | 材料 |
|---|---|---|---|---|---|---|---|---|---|---|
| 5021 RFV | 1/2 | FKM | 300 | with | Plug | Pressure Eliminator | 47 | 27 | 30 | Stainless Steel, Brass Valve |
| 5020 V | 1/2 | FKM | 320 | with | Plug | Standard | 46 | 27 | 30 | Brass / Steel |
| 5020 UV | 1/2 | na | 320 | without | Plug | Standard | 42 | 27 | 30 | Brass / Steel |
| 5020 RV | 1/2 | FKM | 300 | with | Plug | Stainless Steel | 46 | 27 | 30 | Stainless Steel |
| 5020 RUV | 1/2 | na | 300 | without | Plug | Stainless Steel | 42 | 27 | 30 | Stainless Steel |
| 5020 | 1/2 | NBR | 320 | with | Plug | Standard | 46 | 27 | 30 | Brass / Steel |
| 5011 V | 1/2 | FKM | 300 | with | Coupling | Pressure Eliminator | 65 | 30 | 40 | Brass / Steel |
| 5011 RV | 1/2 | FKM | 300 | with | Coupling | Pressure Eliminator | 65 | 30 | 40 | Stainless Steel |
| 5011 RFV | 1/2 | FKM | 300 | with | Coupling | Pressure Eliminator | 65 | 30 | 40 | Stainless Steel, Brass Valve |
| 5011 | 1/2 | NBR | 300 | with | Coupling | Pressure Eliminator | 65 | 30 | 40 | Brass / Steel |
| 5010 VUV | 1/2 | FKM | 300 | without | Coupling | Standard | 65 | 30 | 40 | Brass / Steel |
| 5010 V | 1/2 | FKM | 300 | with | Coupling | Standard | 65 | 30 | 40 | Brass / Steel |
| 5010 UV | 1/2 | NBR | 300 | without | Coupling | Standard | 65 | 30 | 40 | Brass / Steel |
| 5010 RVUV | 1/2 | FKM | 300 | without | Coupling | Stainless Steel | 65 | 30 | 40 | Stainless Steel |
| 5010 RV | 1/2 | FKM | 300 | with | Coupling | Stainless Steel | 65 | 30 | 40 | Stainless Steel |
| 5010 | 1/2 | NBR | 300 | with | Coupling | Standard | 65 | 30 | 40 | Brass / Steel |
| 5000-PSN | 1/2 | NBR | 0 | n/a | Seal-Kit | for Coupling | n/a | n/a | n/a | n/a |
| 15021 V | 1 1/2 | FKM | 200 | with | Plug | Pressure Eliminator | 107 | 60 | 67 | Brass / Steel |
| 15021 | 1 1/2 | NBR | 200 | with | Plug | Pressure Eliminator | 107 | 60 | 67 | Brass / Steel |
| 15020 V | 1 1/2 | FKM | 200 | with | Plug | Standard | 107 | 60 | 67 | Brass / Steel |
| 15020 UV | 1 1/2 | na | 200 | without | Plug | Standard | 107 | 60 | 67 | Brass / Steel |
| 15020 RV | 1 1/2 | FKM | 150 | with | Plug | Stainless Steel | 107 | 60 | 67 | Stainless Steel |
| 15020 RUV | 1 1/2 | na | 150 | without | Plug | Stainless Steel | 107 | 60 | 67 | Stainless Steel |
| 15020 MV | 1 1/2 | FKM | 50 | with | Plug | Brass | 107 | 60 | 67 | Brass |
| 15020 MUV | 1 1/2 | na | 50 | without | Plug | Brass | 107 | 60 | 67 | Brass |
| 15020 M | 1 1/2 | NBR | 50 | with | Plug | Brass | 107 | 60 | 67 | Brass |
| 15020 | 1 1/2 | NBR | 200 | with | Plug | Standard | 107 | 60 | 67 | Brass / Steel |
| 15011-QC | 1 1/2 | NBR | 200 | with | Coupling | Pressure Eliminator | 112 | 60 | 73 | Brass / Steel |
| 15011 V | 1 1/2 | FKM | 200 | with | Coupling | Pressure Eliminator | 112 | 60 | 73 | Brass / Steel |
| 15010-QC | 1 1/2 | NBR | 200 | with | Coupling | Standard | 112 | 60 | 73 | Brass / Steel |
| 15010 VUV | 1 1/2 | FKM | 200 | without | Coupling | Standard | 112 | 60 | 73 | Brass / Steel |
| 15010 V | 1 1/2 | FKM | 200 | with | Coupling | Standard | 112 | 60 | 73 | Brass / Steel |
| 15010 UV | 1 1/2 | NBR | 200 | without | Coupling | Standard | 112 | 60 | 73 | Brass / Steel |
| 15010 RVUV | 1 1/2 | FKM | 150 | without | Coupling | Stainless Steel | 112 | 60 | 73 | Stainless Steel |
| 15010 RV | 1 1/2 | FKM | 150 | with | Coupling | Stainless Steel | 112 | 60 | 73 | Stainless Steel |
| 15010 MVUV | 1 1/2 | FKM | 50 | without | Coupling | Brass | 112 | 60 | 73 | Brass |
| 15010 MV | 1 1/2 | FKM | 50 | with | Coupling | Brass | 112 | 60 | 73 | Brass |
| 15010 MUV | 1 1/2 | NBR | 50 | without | Coupling | Brass | 112 | 60 | 73 | Brass |
| 15010 M | 1 1/2 | NBR | 50 | with | Coupling | Brass | 112 | 60 | 73 | Brass |
| 10021 V | 1 | FKM | 280 | with | Plug | Pressure Eliminator | 61 | 46 | 49 | Brass / Steel |
| 10021 RV | 1 | FKM | 250 | with | Plug | Pressure Eliminator | 61 | 46 | 49 | Stainless Steel |
| 10021 RFV | 1 | FKM | 250 | with | Plug | Pressure Eliminator | 61 | 46 | 49 | Stainless Steel, Brass Valve |
| 10021 | 1 | NBR | 280 | with | Plug | Pressure Eliminator | 61 | 46 | 49 | Brass / Steel |
| 10020 V | 1 | FKM | 280 | with | Plug | Standard | 60 | 46 | 49 | Brass / Steel |
| 10020 UV | 1 | na | 280 | without | Plug | Standard | 53 | 46 | 49 | Brass / Steel |
| 10020 RV | 1 | FKM | 250 | with | Plug | Stainless Steel | 60 | 46 | 49 | Stainless Steel |
| 10020 RUV | 1 | na | 250 | without | Plug | Stainless Steel | 53 | 46 | 49 | Stainless Steel |
| 10020 | 1 | NBR | 280 | with | Plug | Standard | 60 | 46 | 49 | Brass / Steel |
| 10011-QC | 1 | NBR | 250 | with | Coupling | Pressure Eliminator | 88 | 45 | 62 | Brass / Steel |
| 10011 V | 1 | FKM | 250 | with | Coupling | Pressure Eliminator | 88 | 45 | 62 | Brass / Steel |
| 10011 RV | 1 | FKM | 250 | with | Coupling | Pressure Eliminator | 88 | 45 | 62 | Stainless Steel |
| 10011 RFV | 1 | FKM | 250 | with | Coupling | Pressure Eliminator | 88 | 45 | 62 | Stainless Steel, Brass Valve |
| 10010 VUV | 1 | FKM | 250 | without | Coupling | Standard | 88 | 45 | 62 | Brass / Steel |
| 10010 V | 1 | FKM | 250 | with | Coupling | Standard | 88 | 45 | 62 | Brass / Steel |
| 10010 UV | 1 | NBR | 250 | without | Coupling | Standard | 88 | 45 | 62 | Brass / Steel |
| 10010 RVUV | 1 | FKM | 250 | without | Coupling | Stainless Steel | 88 | 45 | 62 | Stainless Steel |
| 10010 RV | 1 | FKM | 250 | with | Coupling | Stainless Steel | 88 | 45 | 62 | Stainless Steel |
| 10010 | 1 | NBR | 250 | with | Coupling | Standard | 88 | 45 | 62 | Brass / Steel |
| 10000-PSN | 1 | FKM | 0 | n/a | Seal-Kit | for Coupling | n/a | n/a | n/a | n/a |
