| 部件 | 产品风格 | 产品序列 | 连接 1 类型 | 连接螺纹尺寸 | 连接 1 管道外径 | 连接 2 类型 | 连接 2 管道外径 | 结构材料 | 初次密封 | 密封材料 | 长度 | 可选配件 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

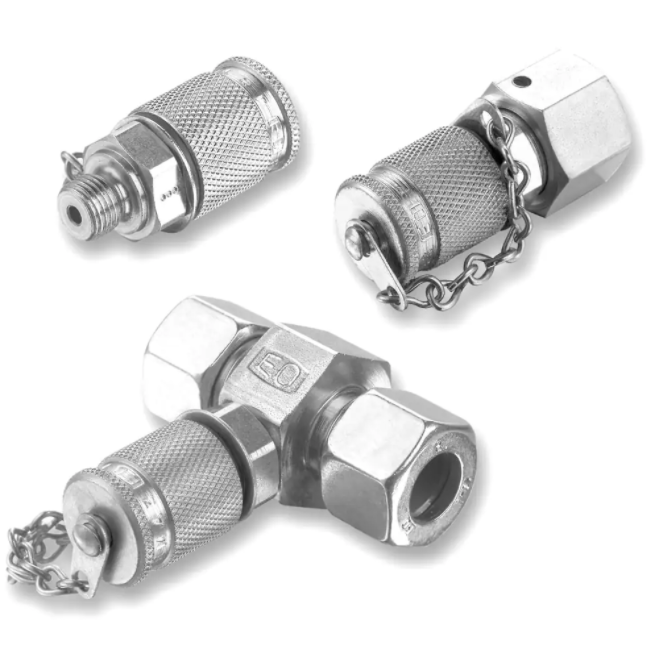

| EMA1/1/2CF | Test point fitting with pin-lock | n/a | Male BSP | G 1/2 | n/a | n/a | n/a | Steel | n/a | n/a | n/a | n/a |
| EMA1/1/4CF | Test point fitting with pin-lock | n/a | Male BSP | G 1/4 | n/a | n/a | n/a | Steel | n/a | n/a | n/a | n/a |
| EMA1/1/8CF | Test point fitting with pin-lock | n/a | Male BSP | G 1/8 | n/a | n/a | n/a | Steel | n/a | n/a | n/a | n/a |
| EMA1/10X1CF | Test point fitting with pin-lock | n/a | Male Metric | M 10x1.0 | n/a | n/a | n/a | Steel | n/a | n/a | n/a | n/a |
| EMA1/10X1ORCF | Test point fitting with pin-lock | n/a | Male Metric | M 10x1.0 | n/a | n/a | n/a | Steel | O-Ring | NBR | n/a | n/a |
| EMA1/12X1.5CF | Test point fitting with pin-lock | n/a | Male Metric | M 12x1.5 | n/a | n/a | n/a | Steel | n/a | n/a | n/a | n/a |
| EMA1/14X1.5CF | Test point fitting with pin-lock | n/a | Male Metric | M 14x1.5 | n/a | n/a | n/a | Steel | n/a | n/a | n/a | n/a |
| EMA1/16X1.5CF | Test point fitting with pin-lock | n/a | Male Metric | M 16x1.5 | n/a | n/a | n/a | Steel | n/a | n/a | n/a | n/a |
| EMA1/3/8CF | Test point fitting with pin-lock | n/a | Male BSP | G 3/8 | n/a | n/a | n/a | Steel | n/a | n/a | n/a | n/a |
| EMA1/8X1OR | Test point fitting with pin-lock | n/a | Male Metric | M 08x1.0 | n/a | n/a | n/a | Steel | O-Ring | NBR | n/a | n/a |
| EMA3/1/271 | Test point with threaded connection M16x2 | n/a | Male BSP | G 1/2 | n/a | n/a | n/a | Stainless Steel | n/a | n/a | n/a | n/a |
| EMA3/1/2CF | Test point with threaded connection M16x2 | n/a | Male BSP | G 1/2 | n/a | n/a | n/a | Steel | n/a | n/a | n/a | n/a |
| EMA3/1/2ED71 | Test point with threaded connection M16x2 | n/a | Male BSP | G 1/2 | n/a | n/a | n/a | Stainless Steel | ED-Seal | FKM | n/a | n/a |
| EMA3/1/2EDCF | Test point with threaded connection M16x2 | n/a | Male Metric | M 14x1.5 | n/a | n/a | n/a | Steel | ED-Seal | NBR | n/a | n/a |
| EMA3/1/2NPT71 | Test point with threaded connection M16x2 | n/a | Male NPT | 1/2-14 NPT | n/a | n/a | n/a | Stainless Steel | n/a | n/a | n/a | n/a |
| EMA3/1/471 | Test point with threaded connection M16x2 | n/a | Male BSP | G 1/4 | n/a | n/a | n/a | Stainless Steel | n/a | n/a | n/a | n/a |
| EMA3/1/4CF | Test point with threaded connection M16x2 | n/a | Male BSP | G 1/4 | n/a | n/a | n/a | Steel | n/a | n/a | n/a | n/a |
| EMA3/1/4ED71 | Test point with threaded connection M16x2 | n/a | Male BSP | G 1/4 | n/a | n/a | n/a | Stainless Steel | ED-Seal | FKM | n/a | n/a |
| EMA3/1/4EDCF | Test point with threaded connection M16x2 | n/a | Male BSP | G 1/4 | n/a | n/a | n/a | Steel | ED-Seal | NBR | n/a | n/a |
| EMA3/1/4NPT71 | Test point with threaded connection M16x2 | n/a | Male NPT | 1/4-18 NPT | n/a | n/a | n/a | Stainless Steel | n/a | n/a | n/a | n/a |
| EMA3/1/4NPTCF | Test point with threaded connection M16x2 | n/a | Male NPT | 1/4-18 NPT | n/a | n/a | n/a | Steel | n/a | n/a | n/a | n/a |
| EMA3/1/871 | Test point with threaded connection M16x2 | n/a | Male BSP | G 1/8 | n/a | n/a | n/a | Stainless Steel | n/a | n/a | n/a | n/a |
| EMA3/1/8CF | Test point with threaded connection M16x2 | n/a | Male BSP | G 1/8 | n/a | n/a | n/a | Steel | n/a | n/a | n/a | n/a |
| EMA3/1/8ED71 | Test point with threaded connection M16x2 | n/a | Male BSP | G 1/8 | n/a | n/a | n/a | Stainless Steel | ED-Seal | FKM | n/a | n/a |
| EMA3/1/8EDCF | Test point with threaded connection M16x2 | n/a | Male BSP | G 1/8 | n/a | n/a | n/a | Steel | ED-Seal | NBR | n/a | n/a |
| EMA3/1/8NPT71 | Test point with threaded connection M16x2 | n/a | Male NPT | 1/8-27 NPT | n/a | n/a | n/a | Stainless Steel | n/a | n/a | n/a | n/a |
| EMA3/1/8NPTCF | Test point with threaded connection M16x2 | n/a | Male NPT | 1/8-27 NPT | n/a | n/a | n/a | Steel | n/a | n/a | n/a | n/a |
| EMA3/10X171 | Test point with threaded connection M16x2 | n/a | Male Metric | M 10x1.0 | n/a | n/a | n/a | Stainless Steel | n/a | n/a | n/a | n/a |
| EMA3/10X1CF | Test point with threaded connection M16x2 | n/a | Male Metric | M 10x1.0 | n/a | n/a | n/a | Steel | n/a | n/a | n/a | n/a |
| EMA3/10X1ED71 | Test point with threaded connection M16x2 | n/a | Male Metric | M 10x1.0 | n/a | n/a | n/a | Stainless Steel | ED-Seal | FKM | n/a | n/a |
| EMA3/10X1EDCF | Test point with threaded connection M16x2 | n/a | Male Metric | M 10x1.0 | n/a | n/a | n/a | Steel | ED-Seal | NBR | n/a | n/a |
| EMA3/10X1OR71 | Test point with threaded connection M16x2 | n/a | Male Metric | M 10x1.0 | n/a | n/a | n/a | Stainless Steel | O-Ring | FKM | n/a | n/a |
| EMA3/10X1ORCF | Test point with threaded connection M16x2 | n/a | Male Metric | M 10x1.0 | n/a | n/a | n/a | Steel | O-Ring | NBR | n/a | n/a |
| EMA3/12X1.571 | Test point with threaded connection M16x2 | n/a | Male Metric | M 12x1.5 | n/a | n/a | n/a | Stainless Steel | n/a | n/a | n/a | n/a |
| EMA3/12X1.5CF | Test point with threaded connection M16x2 | n/a | Male Metric | M 12x1.5 | n/a | n/a | n/a | Steel | n/a | n/a | n/a | n/a |
| EMA3/12X1.5ED71 | Test point with threaded connection M16x2 | n/a | Male Metric | M 12x1.5 | n/a | n/a | n/a | Stainless Steel | ED-Seal | FKM | n/a | n/a |
| EMA3/12X1.5EDCF | Test point with threaded connection M16x2 | n/a | Male Metric | M 12x1.5 | n/a | n/a | n/a | Steel | ED-Seal | NBR | n/a | n/a |
| EMA3/12X1.5ISOCF | Test point with threaded connection M16x2 | n/a | Male Metric | M 12x1.5 | n/a | n/a | n/a | Steel | O-Ring | NBR | n/a | n/a |
| EMA3/14X1.571 | Test point with threaded connection M16x2 | n/a | Male Metric | M 14x1.5 | n/a | n/a | n/a | Stainless Steel | n/a | n/a | n/a | n/a |
| EMA3/14X1.5CF | Test point with threaded connection M16x2 | n/a | Male Metric | M 14x1.5 | n/a | n/a | n/a | Steel | n/a | n/a | n/a | n/a |
| EMA3/14X1.5ED71 | Test point with threaded connection M16x2 | n/a | Male Metric | M 14x1.5 | n/a | n/a | n/a | Stainless Steel | ED-Seal | FKM | n/a | n/a |
| EMA3/14X1.5EDCF | Test point with threaded connection M16x2 | n/a | Male Metric | M 14x1.5 | n/a | n/a | n/a | Steel | ED-Seal | NBR | n/a | n/a |
| EMA3/14X1.5ISO71 | Test point with threaded connection M16x2 | n/a | Male Metric | M 14x1.5 | n/a | n/a | n/a | Stainless Steel | O-Ring | FKM | n/a | n/a |
| EMA3/14X1.5ISOCF | Test point with threaded connection M16x2 | n/a | Male Metric | M 14x1.5 | n/a | n/a | n/a | Steel | O-Ring | NBR | n/a | n/a |
| EMA3/16X1.571 | Test point with threaded connection M16x2 | n/a | Male Metric | M 16x1.5 | n/a | n/a | n/a | Stainless Steel | n/a | n/a | n/a | n/a |
| EMA3/16X1.5CF | Test point with threaded connection M16x2 | n/a | Male Metric | M 16x1.5 | n/a | n/a | n/a | Steel | n/a | n/a | n/a | n/a |
| EMA3/16X1.5ED71 | Test point with threaded connection M16x2 | n/a | Male Metric | M 16x1.5 | n/a | n/a | n/a | Stainless Steel | ED-Seal | FKM | n/a | n/a |
| EMA3/16X1.5EDCF | Test point with threaded connection M16x2 | n/a | Male Metric | M 16x1.5 | n/a | n/a | n/a | Steel | ED-Seal | NBR | n/a | n/a |
| EMA3/18X1.5CF | Test point with threaded connection M16x2 | n/a | Male Metric | M 18x1.5 | n/a | n/a | n/a | Steel | n/a | n/a | n/a | n/a |
| EMA3/18X1.5EDCF | Test point with threaded connection M16x2 | n/a | Male Metric | M 18x1.5 | n/a | n/a | n/a | Steel | ED-Seal | NBR | n/a | n/a |
| EMA3/20X1.5EDCF | Test point with threaded connection M16x2 | n/a | Male Metric | M 20x1.5 | n/a | n/a | n/a | Steel | ED-Seal | NBR | n/a | n/a |
| EMA3/22X1.5EDCF | Test point with threaded connection M16x2 | n/a | Male Metric | M 22x1.5 | n/a | n/a | n/a | Steel | ED-Seal | NBR | n/a | n/a |
| EMA3/3/4CF | Test point with threaded connection M16x2 | n/a | Male BSP | G 3/4 | n/a | n/a | n/a | Steel | n/a | n/a | n/a | n/a |
| EMA3/3/4EDCF | Test point with threaded connection M16x2 | n/a | Male BSP | G 3/4 | n/a | n/a | n/a | Steel | ED-Seal | NBR | n/a | n/a |
| EMA3/3/871 | Test point with threaded connection M16x2 | n/a | Male BSP | G 3/8 | n/a | n/a | n/a | Stainless Steel | n/a | n/a | n/a | n/a |
| EMA3/3/8CF | Test point with threaded connection M16x2 | n/a | Male BSP | G 3/8 | n/a | n/a | n/a | Steel | n/a | n/a | n/a | n/a |
| EMA3/3/8ED71 | Test point with threaded connection M16x2 | n/a | Male BSP | G 3/8 | n/a | n/a | n/a | Stainless Steel | ED-Seal | FKM | n/a | n/a |
| EMA3/3/8EDCF | Test point with threaded connection M16x2 | n/a | Male BSP | G 3/8 | n/a | n/a | n/a | Steel | ED-Seal | NBR | n/a | n/a |
| EMA3/3/8NPT71 | Test point with threaded connection M16x2 | n/a | Male NPT | 3/8-18 NPT | n/a | n/a | n/a | Stainless Steel | n/a | n/a | n/a | n/a |
| EMA3/7/16UNF71 | Test point with threaded connection M16x2 | n/a | Male UNF | 7/16-20 UNF | n/a | n/a | n/a | Stainless Steel | O-Ring | FKM | n/a | n/a |
| EMA3/7/16UNFCF | Test point with threaded connection M16x2 | n/a | Male UNF | 7/16-20 UNF | n/a | n/a | n/a | Steel | O-Ring | NBR | n/a | n/a |
| EMA3/8X1OR71 | Test point with threaded connection M16x2 | n/a | Male Metric | M 08x1.0 | n/a | n/a | n/a | Stainless Steel | O-Ring | FKM | n/a | n/a |
| EMA3/8X1ORCF | Test point with threaded connection M16x2 | n/a | Male Metric | M 08x1.0 | n/a | n/a | n/a | Steel | O-Ring | NBR | n/a | n/a |
| EMA3/9/16UNFCF | Test point with threaded connection M16x2 | n/a | Male UNF | 9/16-18 UNF | n/a | n/a | n/a | Steel | O-Ring | NBR | n/a | n/a |
| GMA1/06LCF | Straight test point fitting with pin-lock | Light | 24° Cone end | M 12x1.5 | 6 mm | n/a | n/a | Steel | n/a | n/a | n/a | Pre-assembled with nut and EO-PSR cutting ring |
| GMA1/06LOMDCF | Straight test point fitting with pin-lock | Light | 24° Cone end | M 12x1.5 | 6 mm | n/a | n/a | Steel | n/a | n/a | n/a | n/a |
| GMA1/06SCF | Straight test point fitting with pin-lock | Heavy | 24° Cone end | M 14x1.5 | 6 mm | n/a | n/a | Steel | n/a | n/a | n/a | Pre-assembled with nut and EO-PSR cutting ring |
| GMA1/06SOMDCF | Straight test point fitting with pin-lock | Heavy | 24° Cone end | M 14x1.5 | 6 mm | n/a | n/a | Steel | n/a | n/a | n/a | n/a |
| GMA1/06ZLCF | Straight test point fitting with pin-lock | Light | 24° Cone end | M 12x1.5 | 6 mm | n/a | n/a | Steel | n/a | n/a | n/a | Pre-assembled with EO-2 functional nut |
| GMA1/06ZSCF | Straight test point fitting with pin-lock | Heavy | 24° Cone end | M 14x1.5 | 6 mm | n/a | n/a | Steel | n/a | n/a | n/a | Pre-assembled with EO-2 functional nut |
| GMA1/08LCF | Straight test point fitting with pin-lock | Light | 24° Cone end | M 14x1.5 | 8 mm | n/a | n/a | Steel | n/a | n/a | n/a | Pre-assembled with nut and EO-PSR cutting ring |
| GMA1/08LOMDCF | Straight test point fitting with pin-lock | Light | 24° Cone end | M 14x1.5 | 8 mm | n/a | n/a | Steel | n/a | n/a | n/a | n/a |
| GMA1/08SCF | Straight test point fitting with pin-lock | Heavy | 24° Cone end | M 16x1.5 | 8 mm | n/a | n/a | Steel | n/a | n/a | n/a | Pre-assembled with nut and EO-PSR cutting ring |
| GMA1/08SOMDCF | Straight test point fitting with pin-lock | Heavy | 24° Cone end | M 16x1.5 | 8 mm | n/a | n/a | Steel | n/a | n/a | n/a | n/a |
| GMA1/08ZLCF | Straight test point fitting with pin-lock | Light | 24° Cone end | M 14x1.5 | 8 mm | n/a | n/a | Steel | n/a | n/a | n/a | Pre-assembled with EO-2 functional nut |
| GMA1/08ZSCF | Straight test point fitting with pin-lock | Heavy | 24° Cone end | M 16x1.5 | 8 mm | n/a | n/a | Steel | n/a | n/a | n/a | Pre-assembled with EO-2 functional nut |
| GMA1/10LCF | Straight test point fitting with pin-lock | Light | 24° Cone end | M 16x1.5 | 10 mm | n/a | n/a | Steel | n/a | n/a | n/a | Pre-assembled with nut and EO-PSR cutting ring |
| GMA1/10LOMDCF | Straight test point fitting with pin-lock | Light | 24° Cone end | M 16x1.5 | 10 mm | n/a | n/a | Steel | n/a | n/a | n/a | n/a |
| GMA1/10SCF | Straight test point fitting with pin-lock | Heavy | 24° Cone end | M 18x1.5 | 10 mm | n/a | n/a | Steel | n/a | n/a | n/a | Pre-assembled with nut and EO-PSR cutting ring |
| GMA1/10SOMDCF | Straight test point fitting with pin-lock | Heavy | 24° Cone end | M 18x1.5 | 10 mm | n/a | n/a | Steel | n/a | n/a | n/a | n/a |
| GMA1/10ZLCF | Straight test point fitting with pin-lock | Light | 24° Cone end | M 16x1.5 | 10 mm | n/a | n/a | Steel | n/a | n/a | n/a | Pre-assembled with EO-2 functional nut |
| GMA1/10ZSCF | Straight test point fitting with pin-lock | Heavy | 24° Cone end | M 18x1.5 | 10 mm | n/a | n/a | Steel | n/a | n/a | n/a | Pre-assembled with EO-2 functional nut |
| GMA1/12LCF | Straight test point fitting with pin-lock | Light | 24° Cone end | M 18x1.5 | 12 mm | n/a | n/a | Steel | n/a | n/a | n/a | Pre-assembled with nut and EO-PSR cutting ring |
| GMA1/12LOMDCF | Straight test point fitting with pin-lock | Light | 24° Cone end | M 18x1.5 | 12 mm | n/a | n/a | Steel | n/a | n/a | n/a | n/a |
| GMA1/12SCF | Straight test point fitting with pin-lock | Heavy | 24° Cone end | M 20x1.5 | 12 mm | n/a | n/a | Steel | n/a | n/a | n/a | Pre-assembled with nut and EO-PSR cutting ring |
| GMA1/12SOMDCF | Straight test point fitting with pin-lock | Heavy | 24° Cone end | M 20x1.5 | 12 mm | n/a | n/a | Steel | n/a | n/a | n/a | n/a |
| GMA1/12ZLCF | Straight test point fitting with pin-lock | Light | 24° Cone end | M 18x1.5 | 12 mm | n/a | n/a | Steel | n/a | n/a | n/a | Pre-assembled with EO-2 functional nut |
| GMA1/12ZSCF | Straight test point fitting with pin-lock | Heavy | 24° Cone end | M 20x1.5 | 12 mm | n/a | n/a | Steel | n/a | n/a | n/a | Pre-assembled with EO-2 functional nut |
| GMA1/14SCF | Straight test point fitting with pin-lock | Heavy | 24° Cone end | M 22x1.5 | 14 mm | n/a | n/a | Steel | n/a | n/a | n/a | Pre-assembled with nut and EO-PSR cutting ring |
| GMA1/14SOMDCF | Straight test point fitting with pin-lock | Heavy | 24° Cone end | M 22x1.5 | 14 mm | n/a | n/a | Steel | n/a | n/a | n/a | n/a |
| GMA1/14ZSCF | Straight test point fitting with pin-lock | Heavy | 24° Cone end | M 22x1.5 | 14 mm | n/a | n/a | Steel | n/a | n/a | n/a | Pre-assembled with EO-2 functional nut |
| GMA1/15LCF | Straight test point fitting with pin-lock | Light | 24° Cone end | M 22x1.5 | 15 mm | n/a | n/a | Steel | n/a | n/a | n/a | Pre-assembled with nut and EO-PSR cutting ring |
| GMA1/15LOMDCF | Straight test point fitting with pin-lock | Light | 24° Cone end | M 22x1.5 | 15 mm | n/a | n/a | Steel | n/a | n/a | n/a | n/a |
| GMA1/15ZLCF | Straight test point fitting with pin-lock | Light | 24° Cone end | M 22x1.5 | 15 mm | n/a | n/a | Steel | n/a | n/a | n/a | Pre-assembled with EO-2 functional nut |
| GMA1/16SCF | Straight test point fitting with pin-lock | Heavy | 24° Cone end | M 24x1.5 | 16 mm | n/a | n/a | Steel | n/a | n/a | n/a | Pre-assembled with nut and EO-PSR cutting ring |
| GMA1/16SOMDCF | Straight test point fitting with pin-lock | Heavy | 24° Cone end | M 24x1.5 | 16 mm | n/a | n/a | Steel | n/a | n/a | n/a | n/a |
| GMA1/16ZSCF | Straight test point fitting with pin-lock | Heavy | 24° Cone end | M 24x1.5 | 16 mm | n/a | n/a | Steel | n/a | n/a | n/a | Pre-assembled with EO-2 functional nut |
| GMA1/18LCF | Straight test point fitting with pin-lock | Light | 24° Cone end | M 26x1.5 | 18 mm | n/a | n/a | Steel | n/a | n/a | n/a | Pre-assembled with nut and EO-PSR cutting ring |
| GMA1/18LOMDCF | Straight test point fitting with pin-lock | Light | 24° Cone end | M 26x1.5 | 18 mm | n/a | n/a | Steel | n/a | n/a | n/a | n/a |
| GMA1/18ZLCF | Straight test point fitting with pin-lock | Light | 24° Cone end | M 26x1.5 | 18 mm | n/a | n/a | Steel | n/a | n/a | n/a | Pre-assembled with EO-2 functional nut |
